State of the Hatch and Beyond

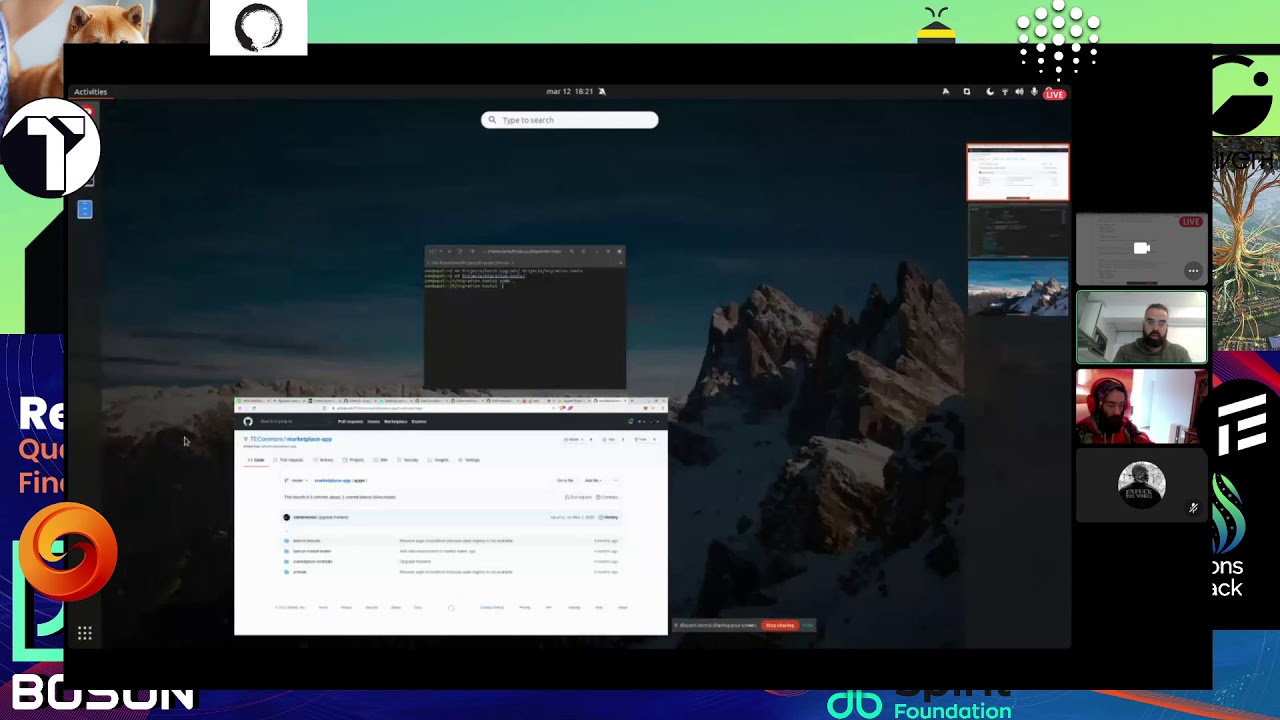

This forum post is a summary of the hatch sync between Sem and YGG that happened on March 12th 2021. The sync is recorded and is a great supplement to this summary:

SEM REVEALS ALL

First off, make sure you have read The Hatch TL;DR so you know what’s going on.

Phase 1 of The Token Engineering Commons, The Hatch DAO is almost ready to launch.

For the past week, Sem and Paulo have been sharing an apartment, working around the clock to finalize the contracts.
Flying Elon Musk GIF by Lumi - Find & Share on GIPHY

Before launching, we need to freeze the contracts so that they can be formally audited for security vulnerabilities. The commons swarm is now working on the final touches before freezing the contracts. As hatchers, we have the power to help them out! Read the docs, run the tests, ask the questions, or simply show your moral support to the dev team as they work around the clock to run the final checks and tests needed for blast off!

Auburn Tigers Lol GIF by SEC Network - Find & Share on GIPHY

Needed for the freeze:

Test Migration Tools
Documentation on the migration tools
Tests on the hatch template

The Migration Tools

This is a custom contract written by commons swarm that will be used to upgrade from the Hatch DAO to the TEC DAO (Phase 1 to Phase 2). We need to get it right before launching phase 1. On Friday March 12th Shawn and Sem went through the logic carefully and it seems to make sense. The more eyeballs on this contract, the better. The more formal testing, the better. The more documentation, the better.

github.com

CommonsSwarm/migration-tools/blob/master/contracts/MigrationTools.sol

pragma solidity ^0.4.24;

import "@aragon/os/contracts/lib/math/SafeMath.sol";
import "@aragon/os/contracts/lib/math/SafeMath64.sol";
import "@aragon/os/contracts/apps/AragonApp.sol";
import "@aragon/minime/contracts/MiniMeToken.sol";
import "@aragon/os/contracts/acl/IACLOracle.sol";
import {IVault as Vault} from "./external/IVault.sol";
import {ITokenManager as TokenManager} from "./external/ITokenManager.sol";


contract MigrationTools is AragonApp, IACLOracle {
    using SafeMath for uint256;
    using SafeMath64 for uint64;

    uint256 public constant PCT_BASE = 10 ** 18; // 0% = 0; 1% = 10^16; 100% = 10^18

    /// Events
    event MigrateDao(address _newMigrationTools, address vault1, address vault2);
    event ClaimTokens(address indexed holder, uint256 amount, uint256 vestingId);

This file has been truncated. show original

The Commons swarm team is currently developing tests for this file. Once they have a few good example tests, it will be easy for others in the community to expand them and consider the coverage.

Hatch Template Tests

This is the repository that will launch the Hatch DAO (Phase 1). Hatch params will be plugged into packages/hardhat/scripts/new-hatch.ts.

An example of such a test is the following:

Open The Hatch
Let’s Contribute
Let’s Claim the impact hours
Let’s close the hatch
Now we all have TEC tokens and the funds are in the vaults.
Now let’s migrate.

For the Commons Upgrade (Phase 2)

This is the base DAO template that will become commons-template

These contracts are the base of the commons swarm. The contracts will be modified in two primary ways:

scripts/new-dao.js will be modified (Commons Upgrade Params!)
External components will be swapped and added
a. Dynamic Issuance Policy (used for HNY) will be swapped by a Bonding Curve
b. BrightID Registry will be removed
c. Migration Tools will be added

The template already includes a Disputable Voting and Disputable Conviction Voting that work altogether with Celeste.

Commons Upgrade Params - new-dao.js

Honey Template parameters

github.com

1Hive/honey-template/blob/master/scripts/new-dao.js

const fs = require('fs')
const path = require("path");
const HoneyPotTemplate = artifacts.require("HoneyPotTemplate")
const MiniMeToken = artifacts.require("MiniMeToken")
const HookedTokenManager = artifacts.require("IHookedTokenManager")

const { pct16, bn, bigExp, getEventArgument, ONE_DAY } = require('@aragon/contract-helpers-test')

const FROM_ACCOUNT = "0xdf456B614fE9FF1C7c0B380330Da29C96d40FB02"
const DAO_ID = "honey-pot" + Math.random() // Note this must be unique for each deployment, change it for subsequent deployments
const NETWORK_ARG = "--network"
const DAO_ID_ARG = "--daoid"

const argValue = (arg, defaultValue) => process.argv.includes(arg) ? process.argv[process.argv.indexOf(arg) + 1] : defaultValue
const getLogParameter = (receipt, log, parameter) => receipt.logs.find(x => x.event === log).args[parameter]

const network = () => argValue(NETWORK_ARG, "local")
const daoId = () => argValue(DAO_ID_ARG, DAO_ID)
const configFilePath = () => network() === "rinkeby" ? '../output/rinkeby-config.json' : '../output/xdai-config.json'

This file has been truncated. show original

This repository will be forked into commons-template and the parameters will be updated.

Commons Swarm Components

This is the honey issuance component. We will turn this into a bonding curve.

TECommons Marketplace App. This is the terribly named Aragon bonding curve application! We are going to combine the contracts from here into the honey-template above to form the commons-template.

The marketplace-app has 4 components:

bancor-formula
This is a (black box) formula that computes the minting and unminting amounts given the of the bonding curve. It works. It’s audited. We don’t have to worry about it. We will use it in phase 2 of the hatch.
bancor market maker
This is the juicy bonding curve. Sweet sweet liquidity.
marketplace-controller
Because we are not using the presale in the new-dao, we should be able to just use the market maker directly and forget about the controller.
Presale
We are not doing a presale. Reserve funds from phase 1 will be sent directly to the reserve of phase 2.

You can read more about the above mechanism in the Aragon Black docs.

To see the parameters in action at mainnet.aragon.org → New Organization → New Fundraising App.

The commons swarm team is currently combining all of the components as mentioned above into a single repository called commons-swarm. After these components are combined, we need tests, tests, and more tests.

Summary: What needs to be done:

For the Hatch

Migration Tools - Tests and Documentation
Hatch Template - Tests and Documentation

Post Hatch

Commons Template with the Bonding Curve
Marketplace App → Honey Template
Parameters from the bonding curve into params modelling
a. Entry Tribute
b. Exit Tribute
c. Reserve Ratio
d. Virtual Supply
e. Virtual Balance

Thanks everyone for your hard work!

If you are reading this and want to help, reach out to @ygg_anderson @sem @Griff @paulo @Freedumbs00

sem · March 14, 2021, 12:50pm

That’s an awesome high-quality sum up of what is the state in which we are at the moment, thank you so much for doing this!

Tamara · March 15, 2021, 3:17pm

“Sem reveals all” ← I love working with you guys!

This was a really helpful sum-up.
